WPI 5G / 4G LTE / 3G Cellular — specifications

Part Number ↕	Web Images	Subcategory ↕	Style ↕	Frequency ↕	Peak Gain ↕	VSWR ↕	Standard Connector ↕	Dimensions ↕	Datasheet
WPANT10082Base / series identifier		Embedded / Internal	SMT Embedded	824 – 960 MHz & 1710 – 2170 MHz	1.5 dBi (915 MHz) & 2.5 dBi (1900 MHz)	< 2:1 < 2:1	—	1.7" x 0.47" x 0.138"
WPANT10083Base / series identifier		Embedded / Internal	SMT Embedded	740 – 800 MHz & 1710 – 2170 MHz	2 dBi (760 MHz) & 2.5 dBi (1900 MHz)	< 2:1 < 2:1	—	1.7" x 0.47" x 0.138"
WPANT10084Base / series identifier		Embedded / Internal	SMT Embedded	698 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 2.5 dBi (1900 MHz)	< 2:1 < 2:1	—	2.16" x 0.85" x 0.138"
WPANT40021-C1B		Embedded / Internal	Wrap-Around	698 – 960 MHz & 1710 – 2700 MHz	3.5 dBi (900 MHz), 4 dBi (1900 MHz)	< 3:1 < 3:1	—	4.66" X 1.81" X 0.01"
WPANT40021-C2A		Embedded / Internal	Wrap-Around	698 – 960 MHz & 1710 – 2700 MHz	3.5 dBi (900 MHz), 4 dBi (1900 MHz)	< 3:1 < 3:1	—	4.66" X 1.81" X 0.01"
WPANT10014Base / series identifier		Embedded / Internal	Micro-Hepta (Board Mount)	824 – 960 MHz, 1567 – 1583 MHz, 1710 – 2170 MHz & 2.4 – 2.5 GHz	2 dBi (890 MHz), 1 dBi (1575 MHz), 2.5 dBi (1940 MHz), 4 dBi (2.45 GHz)	< 2.5:1 < 3:1 < 2.5:1 < 3:1	—	1.5" x 0.67" x 0.5"
WPANT10023Base / series identifier		Embedded / Internal	Surface Mount	824 – 894 MHz & 1850 – 1990 MHz	Device and Application dependent	< 2:1 < 2.5:1	—	2.6" x 1.9" x 0.062"
WPANT10009-S1C		Embedded / Internal	Surface Mount with Adhesive	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 3 dBi (1900 MHz)	< 2:1 < 2.5:1	—	1.7" x 0.8" x 0.2"
WPANT10009-S2B		Embedded / Internal	Surface Mount with Adhesive	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 3 dBi (1900 MHz)	< 2:1 < 2.5:1	—	1.7" x 0.8" x 0.2"
WPANT10009-S3A		Embedded / Internal	Surface Mount with Adhesive	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 3 dBi (1900 MHz)	< 2:1 < 2.5:1	—	1.7" x 0.8" x 0.2"
WPANT10009-S4A		Embedded / Internal	Surface Mount with Adhesive	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 3 dBi (1900 MHz)	< 2:1 < 2.5:1	—	1.7" x 0.8" x 0.2"
WPANT10009-S5A		Embedded / Internal	Surface Mount with Adhesive	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 3 dBi (1900 MHz)	< 2:1 < 2.5:1	—	1.7" x 0.8" x 0.2"
WPANT10045-C1A		Embedded / Internal	Surface Mount with Adhesive	824 – 894 MHz, 1850 – 1990 MHz & 2.4 – 2.5 GHz	0.5 dBi (850 MHz), 2 dBi (1900 MHz) & 2 dBi (2.45 GHz)	< 2:1 < 2:1 < 2:1	—	84.6mm x 10.2mm x 1.6mm
WPANT10024-SC		Embedded / Internal	Surface Mount with Adhesive	824 – 894 MHz & 1850 – 1990 MHz	3 dBi (860 MHz ), 3 dBi (1920 MHz	< 2:1 < 2:1	Hirose W.FL equivalent	2.63" x 1.55" x 0.031"
WPANT10024-S2A		Embedded / Internal	Surface Mount with Adhesive	824 – 894 MHz & 1850 – 1990 MHz	3 dBi (860 MHz ), 3 dBi (1920 MHz	< 2:1 < 2:1	Hirose W.FL equivalent	2.63" x 1.55" x 0.031"
WPANT30201-S1B		Panel Mount	Panel Mount	698 – 960 MHz & 1710 – 2700 MHz	3 dBi (900 MHz), 4 dBi (1900 MHz) Radiation Pattern: Omni-Directional	< 2:1 < 2:1	NMO - Type-N Male	3.94" H x 1.65" Base Diameter
WPANT30202-S1A		Panel Mount	Panel Mount	698 – 960 MHz & 1710 – 2700 MHz	2 dBi (900 MHz), 3 dBi (1900 MHz) Radiation Pattern: Omni-Directional	< 2:1 < 2:1	Type-N Female	3.35" H x 1.65" Base Diameter
WPANT30074-S1A		Panel Mount	Panel Mount	698 – 960 MHz, 1392 – 1435 MHz & 1710 – 2700 MHz	2 dBi (850 MHz), 2 dBi (1413 MHz), 4 dBi (1850 & 2400 MHz) Radiation Pattern: Omni Directional	< 3:1 < 2.5:1 < 2.5:1	SMA Male Lightning Protection: DC Ground for all frequency bands	3.94" H x 5.3" Diameter of metal plate
WPANT30004-SB2		Panel Mount	Panel Mount / Glass Mount	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (890 MHz), 3 dBi (1940 MHz) Radiation Pattern: Omni Directional	< 3:1 < 2.5:1	SMA Male Lightning Protection: DC Ground for all frequency bands	3.8" H x 3.9" Diameter of metal plate
WPANT30100-S1A		Panel Mount	Panel Mount	824 – 960 MHz & 1710 – 2700 MHz	3.2 dBi (850 MHz), 4.0 dBi (1900 MHz) Radiation Pattern: Omni Directional	< 3:1 < 3:1	SMA Male Mount: Threaded Metal Mount with 2 flat edges	3.2" x 1.2" x 1.2"
WPANT30002-SB		Panel Mount	Panel Mount	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (890 MHz), 4 dBi (1940 MHz) Radiation Pattern: Omni Directional	< 2.5:1 < 2.5:1	Type-N Female Jack with a Flat end	3.2" x 1.2" x 1.2"
WPANT30142-S1A		Panel Mount	Rugged Panel Mount (Vandal Resistant)	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (900 MHz), 4 dBi (1900 MHz) Radiation Pattern: Near Omni-Directional	< 2.5:1 < 2.5:1	Type-N Female with 2 flat edges Different cable and connector styles can be accommodated.	3.5" H x 2.9" Base Diameter
WPANT30070-S1A		Panel Mount	Panel Mount	824 – 960 MHz & 1710 – 2170 MHz	2 dBi (915 MHz) & 3.5 dBi (1900 MHz)	< 3:1 < 3:1	IPX / Hirose equivalent	2" x 1.1" x 0.8"
WPANT30060-S1A		Panel Mount	Panel Mount	824 – 960 MHz, 1567 – 1583 MHz, 1710 – 2170 MHz & 4.9 – 5.9 GHz	2.5 dBi (900 MHz), 27 dB (1575 MHz), 3 dBi (1900 MHz)	< 3:1 < 2:1 < 2.5:1 < 2:1	Straight SMA male (1575 MHz)	4.8" (Base Diameter) x 3.74" H Standard Cables: LMR200 (850/900/1900/2100 MHz), RG316 (1575 MHz), LMR200 (5 GHz) Standard Connectors: Right angle SMA male (850/900/1900/2100 MHz), Straight SMA male (1575 MHz), Type-N female (5 GHz) Lightning Protection: DC Ground
WPANT30136-S1A		Panel Mount	Panel Mount	824 – 960 MHz, 1567 – 1583 MHz, 1710 – 2170 MHz, 2.4 – 2.5 GHz & 4.9 – 5.9 GHz	2.5 dBi (900 MHz), 27 dB (1575 MHz), 3 dBi (1900 MHz), 3 dBi (2.4 GHz), 4 dBi (5.4 GHz)	< 3:1 < 2.5:1 < 2:1 < 2:1 < 2:1	—	4.8" Base Diameter x 3.74" H Standard Cables: LMR200 Standard Connectors: SMA Male (3 connectors) Lightning Protection: DC Ground
WPANT30013-SB		Panel Mount	Glass Mount	824 – 960 MHz, 1567 – 1583 MHz & 1710 – 2170 MHz	2.5 dBi (890 MHz), 3 dBi (1575 MHz) & 3.5 dBi (1940 MHz)	< 2:1 < 2:1 < 2:1	GPS: SMA Male / GSM: F ME Female	3.1" Diameter x 0.6" H
WPANT30072-RA		Panel Mount	Glass Mount	890 – 960 MHz & 1710 – 1990 MHz	2.5 dBi (915 MHz) & 2.5 dBi (1850 MHz)	< 2:1 < 2:1	SMA Male	4.5" L x 0.87" W
WPANT30040-RA		Panel Mount	Ceiling Mount	806 – 960 MHz & 1.71 – 2.5 GHz	2 dBi (885 MHz), 5 dBi (2.1 GHz) Radiation Pattern: Omni Directional	< 2:1 < 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	7.3" Diameter x 3.4" H
WPANT30146-S1A		Panel Mount	Rugged Panel Mount (Vandal Resistant)	698 – 960 MHz & 1710 – 2700 MHz	1.5 to 2.5 dBi Radiation Pattern: Near Omni-Directional	< 3:1 < 3:1	SMA Male Different cable and connector styles can be accommodated.	3.15" H x 5" Base Diameter

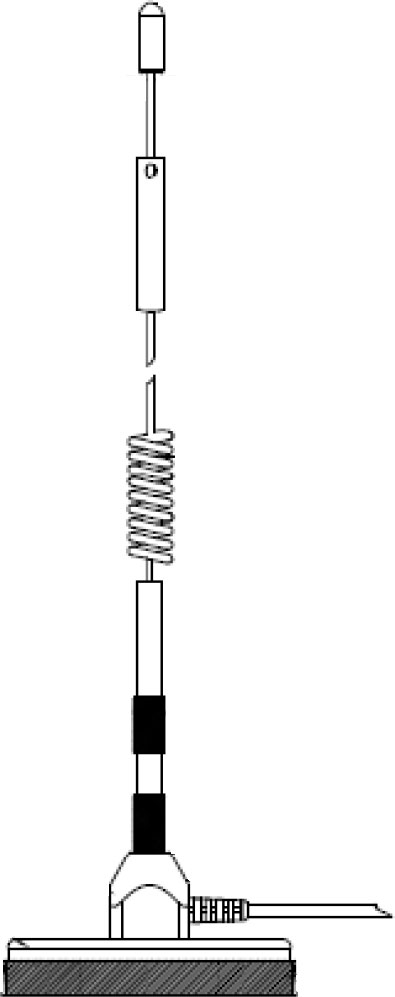

WPANT30134-R1A		Panel Mount	Mag Mount	824 – 960 MHz & 1710 – 2170 MHz	6 dBi (900 MHz), 6 dBi (1900 MHz) Radiation Pattern: Omni-Directional	< 2:1 < 2:1	TNC Male Different cable and connector styles can be accommodated.	11.6" x 2.7" Base Diameter
WPANT30001-SB		Whip / Stubby	Stubby Antenna - Omni directional	824 – 960 MHz & 1710 – 2170 MHz	0.5 dBi (890 MHz), 2.5 dBi (1940 MHz) Radiation Pattern: Omni Directional	< 2.5:1 < 2.5:1	Right angle SMA Male	2.0" x 0.37" Diameter
WPANT30031-RA		Whip / Stubby	Stubby Antenna - Omni directional	890 – 960 MHz & 1710 – 1880 MHz	3 dBi (930 MHz), 3 dBi (1800 MHz) Radiation Pattern: Omni Directional	< 2:1 < 2:1	Right Angle SMA Male	4.5"
WPANTDP006Base / series identifier		Whip / Stubby	Whip / Monopole / Helix	880 – 960 MHz & 1710 – 1880 MHz	1 dBi (920 MHz), 1 dBi (1800 MHz)	<2:1 <2:1	Straight SMA Male	1.34" L x 0.3" Diameter
WPANT30105-R1A		Whip / Stubby	Stubby Antenna - Omni directional	860 – 960 MHz	2 dBi Radiation Pattern: Omni Directional	< 2:1	RP-SMA Male	3.1" x 0.55" Diameter

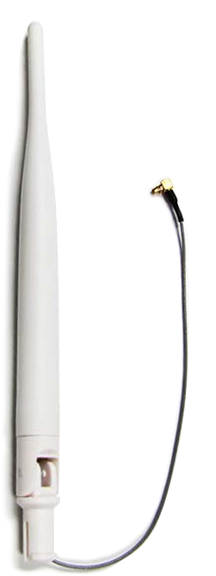

WPANT30030-R2A		Whip / Stubby	Stubby Antenna - Omni directional	824 – 894 MHz	2 dBi Radiation Pattern: Omni Directional	< 2:1	MMCX	8.3"
WPANTDP033Base / series identifier		Whip / Stubby	Stubby Antenna -Omni directional	824 – 960 MHz, 1710 – 2170 MHz	2 dBi (900 MHz), 2 dBi (1990 MHz)	960MHz;≤1.8@1710-	Right Angle SMA Male	4.53" L
WPANT30156-R1A		Whip / Stubby	Stubby Antenna - Omni directional	698 – 960 MHz & 1710 – 2700 MHz	1 dBi (900 MHz), 3 dBi (1900 MHz) Radiation Pattern: Omni-Directional	< 2:1 < 2:1	SMA Male with swivel mechanism	6.7”
WPANT30156-R2A		Whip / Stubby	Stubby Antenna - Omni directional	698 – 960 MHz & 1710 – 2700 MHz	1 dBi (900 MHz), 3 dBi (1900 MHz) Radiation Pattern: Omni-Directional	< 2:1 < 2:1	SMA Male with swivel mechanism	6.7”
WPANTDP032Base / series identifier		Whip / Stubby	Stubby Antenna -Omni directional	824 – 960 MHz, 1710 – 2170 MHz	2 dBi (900 MHz), 2 dBi (1990 MHz	≤3 / ≤2.5	FME Female	7.7" L

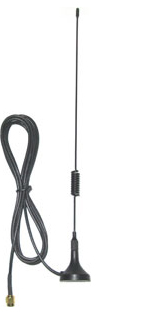

WPANT30038-RA		Whip / Stubby	Stubby Antenna - Omni directional	870 – 960 MHz & 1710 – 1880 MHz	3 dBi (920 MHz), 3 dBi (1800 MHz) Radiation Pattern: Omni Directional	< 2:1 < 2:1	SMA Male	11.4"
WPANT30030-R2A		Whip / Stubby	Stubby Antenna - Omni directional	824 – 894 MHz	2 dBi Radiation Pattern: Omni Directional	< 2:1	MMCX	8.3"
WPANT30130-R1A		High Gain Access Point	Panel Wall Mount	698 – 960 MHz & 1710 – 2700 MHz	7 dBi (900 MHz), 9 dBi (1900 MHz) Radiation Pattern: Directional	< 2:1 < 2:1	—	12.4’’ x 7.9" x 2.9" Standard Connectors: Type-N Female (2 connectors)
WPANT30078-R1A		High Gain Access Point	Pole Mount Panel Antenna	698 – 960 MHz & 1710 – 2700 MHz	11 dBi (900 MHz), 12 dBi (1.9 & 2.4 GHz) Radiation Pattern: Directional	< 2.5:1 < 2.5:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	26" x 11" x 5.3"
WPANT30041-RA		High Gain Access Point	Ceiling Mount	806 – 960 MHz & 1.71 – 2.5 GHz	5 dBi (885 MHz), 7 dBi (2.1 GHz) Radiation Pattern: Omni Directional	< 2:1 < 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	7.3’’ Diameter x 3.4" H
WPANT30042-RA		High Gain Access Point	Log-Periodic Pole Mount	806 – 960 MHz & 1.71 – 2.5 GHz	8 dBi (885 MHz), 9 dBi (2.1 GHz) Radiation Pattern: Directional	< 2:1 < 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	11.8" x 8.27" x 2.6"
WPANT30043-RA		High Gain Access Point	Panel Antenna	806 – 960 MHz & 1.71 – 2.5 GHz	8 dBi (885 MHz), 8 dBi (2.1 GHz) Radiation Pattern: Directional	< 2:1 < 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	8.27’’ x 7.1" x 1.7"
WPANT30104-S1C		High Gain Access Point	Omni directional pole mount	900 – 960 MHz	6 dBi Radiation Pattern: Omni-directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	28.75"
WPANT30114-S1A		High Gain Access Point	Omni-Directional Pole Mount	860 - 890 Mhz	6 dBi Radiation Pattern: Omni Drectional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	28.75"
WPANT30217-S1A		High Gain Access Point	True Omni Directional Pole Mount	902 - 928 Mhz & 2.4 - 2.5 Ghz	3dBi (915 Mhz) 4dBi (2.45 Ghz) Radiation Pattern: True Omni Directional	< 1.5:1 < 2.5:1	Type-N Male Lightning Protection: DC Ground for all frequency bands	15.35"
WPANT30131Base / series identifier		High Gain Access Point	Panel Pole Mount	1710 – 2700 MHz	11.5 dBi Radiation Pattern: Directional	—	Type-N Female	15.7" x 6.3" x 3.2"
WPANT30045-RA		High Gain Access Point	Base Station	824 – 896 MHz	16 dBi Radiation Pattern: Directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	50" x 11.3" x 5.2"
WPANT30048-RA		High Gain Access Point	Omni-Directional Pole Mount	870 – 960 MHz	11 dBi Radiation Pattern: Omni-Directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	118.1" x 2" dia
WPANT30046-RA		High Gain Access Point	Corner / Sector Antenna	870 – 960 MHz	17 dBi Radiation Pattern: Directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	53.9’’ x 18.1’’ x 7.5’’
WPANT30044-RA		High Gain Access Point	Base Station	870 – 960 MHz	17 dBi Radiation Pattern: Directional	< 2:1	Type-N Female	72.8’’ x 11.3’’ x 5.2’’
WPANT30047-RA		High Gain Access Point	Corner / Sector Antenna	824 – 896 MHz	17 dBi Radiation Pattern: Directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	76’’ x 18.1’’ x 7.5’’
WPANT30274-R1A		High Gain Access Point	Omni-Directional Antenna	617 – 960 MHz & 1710 - 3700 MHz	3 dBi & 4 dBi Radiation Pattern: Omni-directional	< 3:1 < 2:1	Type-N Female	9.45’’ Height x 2.48’’ Base diameter’
WPANT30319-R1A		High Gain Access Point	Directional Pole / Wall Mount Antenna	698 – 960 MHz & 1710 – 2700 MHz	6 dBi & 8 dBi Radiation Pattern: Directional (23 dB front-to-back ratio)	< 2:1 < 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	16.1’’ X 8.27’’ X 2.6’’
WPANT30348-R1A		High Gain Access Point	Omni-Directional Pole Mount	870 – 960 MHz	11 dBi Radiation Pattern: Omni-Directional	< 2:1	Type-N Femal Lightning Protection: DC Ground for all frequency bands	118.1’’ x 2’’ Diameter
WPANT30050-RA		High Gain Access Point	Yagi	824 – 960 MHz	8 dBi Radiation Pattern: Directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	21.4’’ L
WPANT30049-RA		High Gain Access Point	Paraboloid	870 – 960 MHz	17 dBi Radiation Pattern: Directional	< 2:1	Type-N Female Lightning Protection: DC Ground for all frequency bands	47.2’’ Diameter
WPANTDP078Base / series identifier		High Gain Access Point	Omni-Directional Pole Mount	810 – 900 MHz, 1800 – 1990 MHz	6 dBi (860 MHz), 6 dBi (1850 MHz) Radiation Pattern: Omni-Directional	—	Type-N Female Different connector requests can be accommodated.	18" (Length) x 1.25" (Dia)
WPANTDP066-R1A		High Gain Access Point	Omni-Directional Pole Mount	824 – 960 MHz, 1850 – 1990 MHz	6 dBi Radiation Pattern: Omni-Directional	<2:1 <2:1	SMA Male Lightning Protection: DC Ground for all frequency bands	16.9" (Length) x 0.9" (Dia)
WPANTDP067-R1A		High Gain Access Point	Omni-Directional Pole Mount	806 – 960 MHz, 1710 – 1990 MHz	7 dBi (900 MHz), 9 dBi (1900 MHz) Radiation Pattern: Omni-Directional	<2:1 <2:1 <2:1	Type-N Female Different connector requests can be accommodated. Lightning Protection: DC Ground for all frequency bands	39.4" (Length) x 0.9" (Dia)

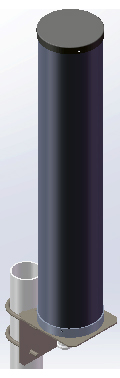

WPANT30132Base / series identifier		High Gain Access Point	Omni Directional Pole Mount	1710 – 2700 MHz	7 dBi Radiation Pattern: Omni Directional	—	—	24.8" x 4.4" Diameter Standard Connectors: DIN Female (2 connectors)

No products match these filters. Try a shorter search or reset the filters.

— indicates a value not provided in the source table. Test conditions and units are included in the column headings. Ordering templates and base identifiers require configuration before ordering.
